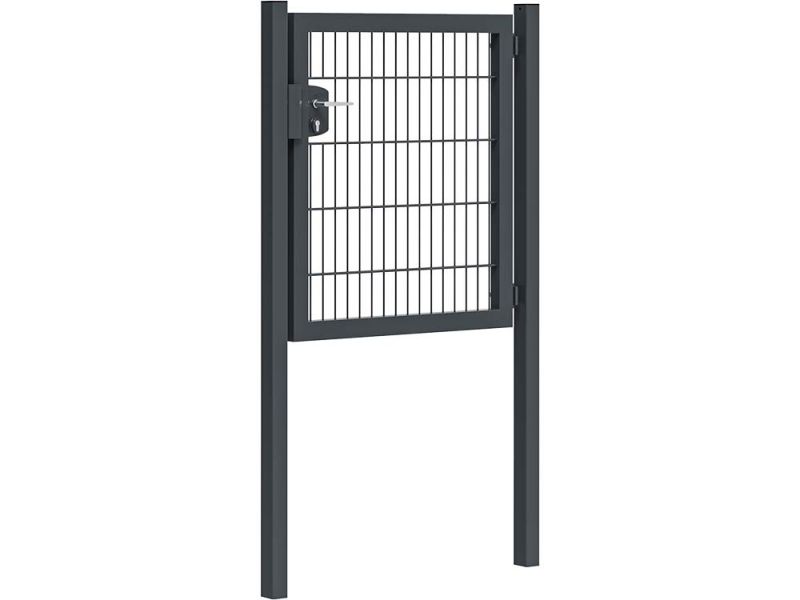

Single Garden Gate with twin wire mesh infill Ø 8/6/8 width 100 cm from Fenceonline
A single garden gate with twin wires mesh Ø 8/6/8 mm is the perfect match for twin wire mesh fencing or all type of metal fences. This strong and sturdy gate is universally applicable in any garden. The twin wires infill consists of Ø 8 mm thick horizontal wires and Ø 6 mm thick vertical wires, which are welded together for extra durability.
The gate posts of the single garden gate with twin wires mesh Ø 8/6/8 mm professional gate measure 60 x 60 mm and are 80 cm longer than the gate wing height for enhanced stability. The posts are made of 2 mm thick steel, ensuring maximum strength and security. With its modern and robust design, the 100 cm wide single garden gate with twin wire mesh provides optimal durability and safety.
Durability & Coating
The professional single garden gates from Fenceonline is first hot dip galvanised and then powder coated. Together with the aluminium lock and strike lock, this offers extremely high corrosion resistance, making the gate exceptionally weather resistant and long lasting.
Components and accessories for the Professional single garden gates
- Two gate posts
- One gate leaf with twin wires Ø 8/6/8 mm infill
- Aluminium lock
- Aluminium strike lock
- Post caps
Additionally, Fenceonline offers an optional child safety lock, which is compatible with all twin wire mesh Ø 8/6/8 mm pedestrian gates. For added convenience, a hydraulic gate closer is available, specifically for the 100 cm wide single garden gate with twin wires mesh Ø 8/6/8 mm gate.
Would you like to increase privacy in your garden? You can purchase privacy slats to weave between the mesh panels of the gate. We recommend ordering privacy slat clips to secure them properly. This way, you can create a solid, private gate.
Dimensions of the Professional single garden gate
The Professional single garden gates come in three widths: 100 cm, 125 cm, and 150 cm.
For the 100 cm wide gate, the specific measurements are:
- 92 cm – Gate wing width
- 94 cm – Passage width between the posts (including space for the latch keeper, which slightly reduces the clearance)
- 112 cm – Total width of the opening, including the posts
- 6 cm – Width per post
A visual representation of the full gate width, including hinges and posts, is available in our manual.
Difference Between Premium and Professional Pedestrian Gates
Fenceonline offers two types of twin wire mesh pedestrian gates: the Premium and the Professional models. Below are some key differences:
- Wire Thickness:
- Professional Gate: 8/6/8 mm twin wires infill
- Premium Gate: 6/5/6 mm twin wires infill
- Lock Mechanism:
- Professional Gate: Aluminium lock case & latch keeper
- Premium Gate: Lock integrated into the gate post
- Hinge Placement & Swing Radius:
- Professional Gate: Hinges mounted outside the post → 180° swing radius
- Premium Gate: Hinges mounted inside the post → 90° swing radius
- Coating:
- Professional Gate: Hot dip galvanised
- Premium Gate: Sendzimir galvanised
Both gates feature a twin wire mesh Ø 8/6/8 mm infill, ensuring high strength and durability.
Installation & Mounting Options
The Professional single garden gate is perfectly compatible with twin wire mesh fencing, especially Ø 8/6/8 twin wire mesh panels. Together, they provide a modern, strong, and secure boundary for your garden.
Fenceonline delivers the gate as a complete package, so all you need to do is install it.
For optimal stability, we recommend placing the gate in the ground using quick setting concrete from Fenceonline. Alternatively, you can mount the gate on base plates. In that case, we offer specially designed base plates for gates. Don’t forget to order self drilling screws for attaching the gate post to the base plate.
Important: We do not supply ground installation materials with the base plates, as each installation environment is unique. However, we are happy to advise you on the best mounting solutions for your situation.
Questions or Need Advice?
Do you have any questions about the single twin wire mesh pedestrian gate? Contact us for personalised advice!
