Locinox - MODULEC SA | Electric strike lock | Ruptura unlocked without voltage

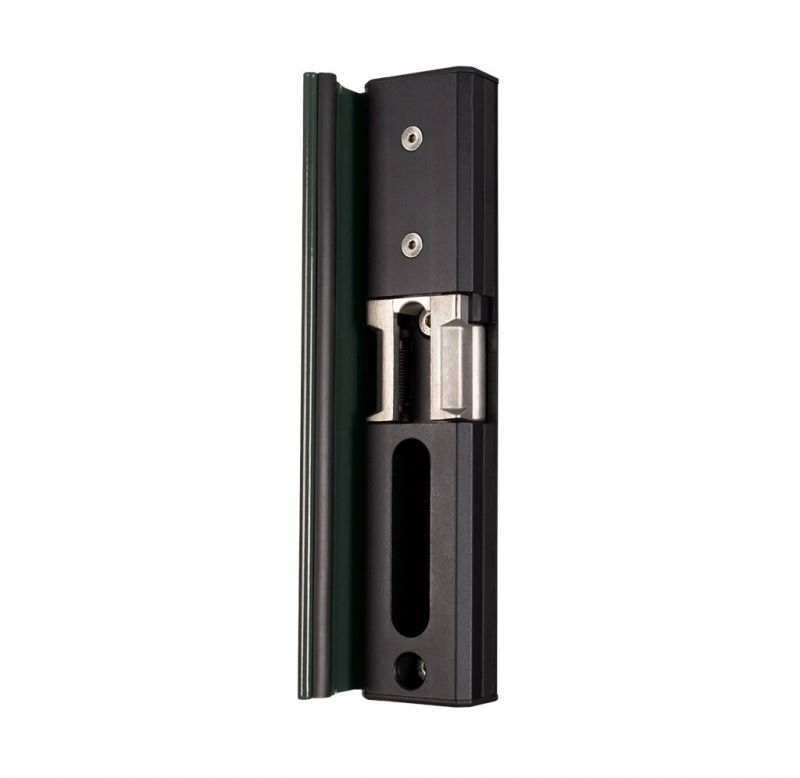

The MODULEC-SA is an easy-to-mount electric latch for surface mounting, thanks to the patented Quick-Fix attachment system. It is easily interchangeable with the SA latch and can be connected to both 12V - 24V AC/DC. The MODULEC-SA is available in two versions: E (Emissa - Normally Closed) and R (Ruptura - Normally Open).
Features:
- Tested for 500,000 cycles
- Quick and simple installation with Quick-Fix
- Resistance to pressure on the day bolt: 300 kg
- Same hole pattern as SA, SH, and SM latches
- Simple left- and right-hand configuration
- Extremely corrosion-resistant: black anodized aluminum housing
- Adjustable for (square) gate profiles 40-60 mm
- Voltage: 12V-24V AC/DC
- Power consumption: 12V - 1.25A / 24V - 0.62A
- Power: 15W
