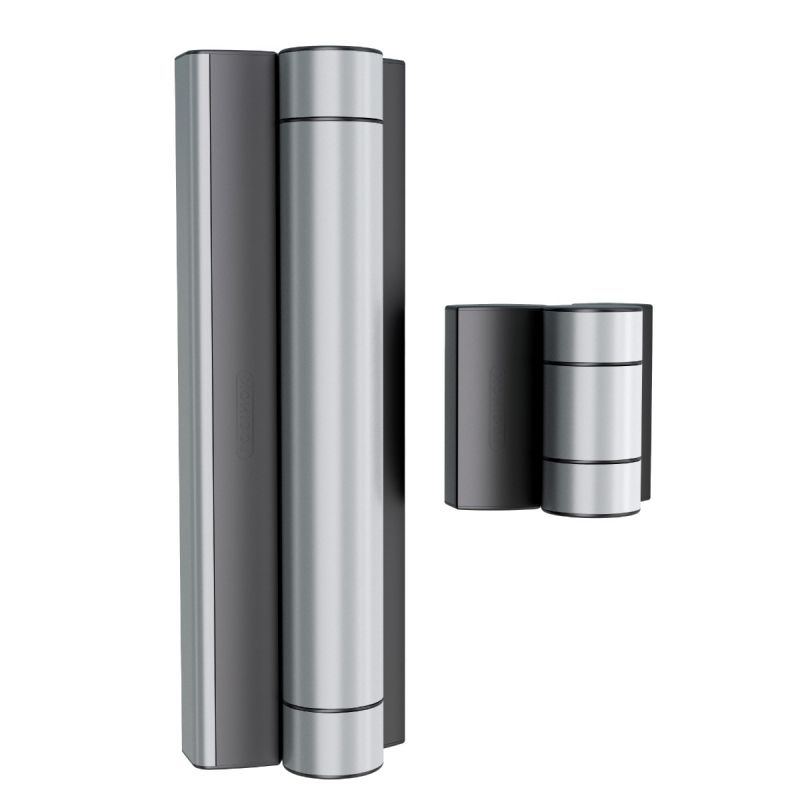

Locinox Magnus | Motorised hinge & gate closer in one for pedestrian gates

SKU: D00000206 - MAGNUS
£1,589.95
Delivery Time
1-5 business days
SKU
D00000206 - MAGNUS
  • Delivery from stock
  • Delivery time 5 - 15 business days

Description

MAGNUS is a motorised gate closer and hinge in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

  • Motorised gate closer with integrated electronics
  • 100 Nm torque
  • Fits on post profiles from 60 mm and gate profiles from 40 mm
  • Steel gear box
  • Anodized aluminium cover
  • Fast and easy fixing with Quick-Fix
  • ETL-tested
  • Input main power supply: 110 AC to 240V AC
  • Motor voltage: 24V DC
  • External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use - to be combined with a lock
  • 2m cable between motor and connection module
  • Compact and vandal-proof design
  • Configuration via app
  • Tested up to 500.000 cycles
  • EN 16005 Compliant



Specifications

More Information
Brand Locinox
Coated RAL 9005, Zilver
Material Aluminum
Protection rating (IP) IP56
Warranty 2 years

Videos

Gate Operator App Configuration

Gate Operator Advanced settings
